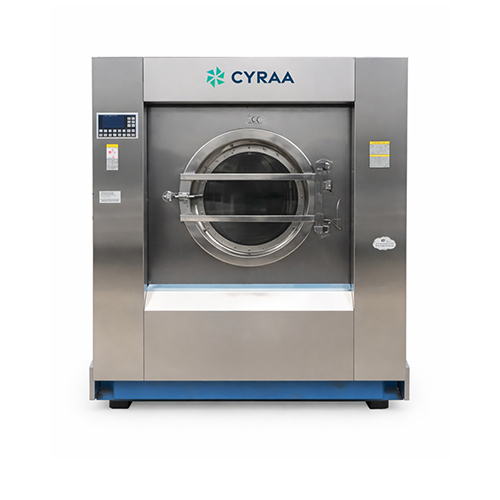

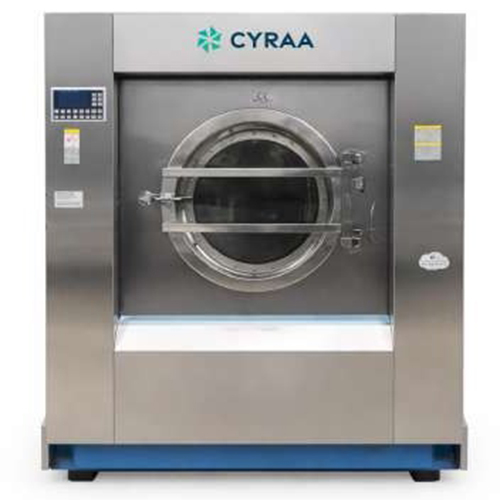

Barrier Washer Extractor

Name: Barrier Washer Extractor
Brand: SUN STERIFAAB PVT. LTD.
Price: 720000 INR
Availability: InStock

Price 720000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Barrier Washer Extractor Specification

Drum Diameter
900 mm

Drum Capacity
120 Liters

Heating
Electric/Steam Heating Options

Voltage
380V / 50Hz, 3 Phase

Capacity
60 kg per cycle

Material
Stainless Steel 304 Interior and Exterior

Control System
Microprocessor Based Automatic Control

Installation Guideline
Wall-type partition installation for clean/dirty room separation

Cleaning Method
High Efficiency Front Loading; Dual Door for Barrier Operation

Door Opening
Large Diameter Door with Safety Lock

Display
Digital Programmable Panel

Safety Features
Emergency Stop Button; Automatic Door Lock During Operation

Door Type
Double Door for Pass-Through Operation

Mounting Type
Free Standing

Noise Level
< 65 dB(A)

Extraction Speed
Up to 900 RPM

Dimensions (LxWxH)
1500 x 1200 x 1700 mm

Weight
Approx. 1200 kg

Water Inlet
Multiple Inlet Valves for Water and Steam

Application
Hospitals, Pharma, Cleanrooms, Laboratories

Barrier Washer Extractor Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Barrier Washer Extractor

Compartmental Drum Design Engineered for efficient washing and extraction, ensuring optimal load distribution and superior cleaning performance.

Free-Standing Structure Robust design eliminates the need for a foundation, allowing easy installation and flexibility in placement.

Washer & Extractor Dual Functionality Integrated system combining washing and extraction in a single unit, enhancing productivity and saving operational time.

Dual Door Configuration Equipped with two doors for front loading and rear unloading, ensuring a seamless and hygienic workflow, ideal for infection-controlled environments.

Mechanical Suspension System Advanced suspension mechanism featuring hydraulic dampers and compression springs to minimize vibration and ensure stable, low-noise operation.

Model Unit	CBWE-30	CBWE-50	CBWE-100
Washing Capacity (kg)	30	50	100
Rolling Container Dimension (mm)	880 670	880 1050	1067 1130
Washing Speed (r/min)	36	36	32
Middle Extract Speed (r/min)	370	370	425
High Extract Speed (r/min)	700	700	800
Rated Voltage (V)	415V 5%	415V 5%	415V 5%
Motor Power (kW)	5.5	7.5	11
Cold / Hot Water & Steam Inlet (inch)	1	1	1.5
Drainage (inch)	4	4	4
Dimensions (L W H) (mm)	1440 1270 1800	1720 1100 1820	2220 1380 2100
Gross Weight (G.W.) (kg)	1570	2200	2800

Capitalise on cutting-edge hygiene with our sizzling Barrier Washer Extractor, a formidable masterpiece engineered for hospitals, pharma, cleanrooms, and laboratories. Its radiant, stainless steel 304 build and large, double-door pass-through design enable safe, ultra-efficient cleaning with a formidable 900 RPM extraction speed. The digital programmable panel, emergency stop button, and automatic door locks assure robust safety and operational command. Last chance to own a high-capacity (60 kg per cycle), 120-liter, high-efficiency marvel - the ultimate solution for environments demanding uncompromised cleanliness and contamination control.

Barrier Washer Extractor: Applications, Usage & Key Advantages

The Barrier Washer Extractor is expertly used in hospitals, pharmaceutical industries, cleanrooms, and laboratories where stringent hygiene is paramount. Designed for barrier operations, it ensures efficient contamination control by separating clean and dirty zones through its double-door, pass-through system. This machine's advantage lies in its high-efficiency front loading and microprocessor control, which collectively deliver consistent, superior cleaning results. Its robust construction and dual heating option further enhance its suitability for the most demanding professional environments.

Barrier Washer Extractor Sample Availability, Market Reach & Payment Terms

Samples of our Barrier Washer Extractor are available for evaluation upon request. We offer nationwide shipment across India, making it accessible to all major domestic markets. Customers can enquire about the asking price and special offers directly with us. We provide flexible payment terms to suit businesses of all sizes, ensuring a seamless transaction process from order to delivery. Shipped with comprehensive installation guidelines, this product is perfect for any professional sanitation requirement.

FAQ's of Barrier Washer Extractor:

Q: How does the barrier operation work in this washer extractor?

A: The barrier operation uses a double-door system that allows loading from the dirty side and unloading from the clean side, effectively preventing cross-contamination between clean and unclean environments.

Q: What are the main benefits of using a Barrier Washer Extractor in hospitals and pharmaceutical facilities?

A: It ensures rigorous hygiene by physically separating clean and dirty areas, offers high-efficiency washing, programmable controls, and has safety features like emergency stops and automatic door locking during operation.

Q: How is the unit typically installed and what partitioning is required?

A: The washer extractor is designed for wall-type partition installation, enabling direct separation of clean and dirty rooms, in line with best practices for contamination control.

Q: When should maintenance or inspections be performed on the machine?

A: Regular maintenance is recommended according to usage intensity. It is best to follow the manufacturer's operational manual, conducting inspections and routine servicing to ensure optimal performance.

Q: What options are available for water and heating?

A: The machine is equipped with multiple inlet valves for both water and steam, and offers electric or steam heating options to match differing infrastructure requirements in various facilities.

Q: Where can this product be shipped and how can I request a sample?

A: The Barrier Washer Extractor is available for shipment across India. Customers can contact us directly to request a sample for evaluation and discuss the asking price and current offers.
